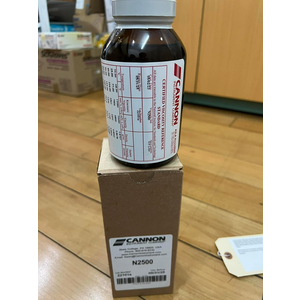

Nhớt chuẩn động học Cannon

Chi tiết

NHỚT CHUẨN CANNON -USA

All CANNON General Purpose Viscosity Standards meet the precision specifications of ASTM D445/D446 and ISO 3104/3105. Lot specific data is provided with each standard.

Table 1 • Nominal Kinematic Viscosity Values of General Purpose Viscosity Standards in mm2/s (cSt)

Catalog Number	Viscosity Standard	-40 °C/ -40 °F	-20 °C/ -4 °F	20 °C/ 68 °F	25 °C/ 77 °F	37.78 °C/ 100 °F	40 °C/ 104 °F	50 °C/ 122 °F	60 °C/ 140 °F	80 °C/ 176 °F	98.89 °C/ 210 °F	100 °C/ 212 °F	SUS 100 °F	SUS 210 °F	SFS 122 °F
9727-C10	N.4†	—	—	0.47	0.45	0.41	0.40	—	—	—	—	—	—	—	—
9727-C15	N.8†	—	—	0.74	0.70	0.61	0.60	—	—	—	—	—	—	—	—
9727-C20	N1.0†	—	2.5	1.3	1.2	1.0	0.97	0.91	—	—	—	—	—	—	—
9727-C22	N2	—	—	2.9	2.6	2.1	2.0	1.7	—	1.1	0.95	0.93	—	—	—
9727-C25	S3	80	—	4.6	4.0	3.0	2.9	2.4	—	1.5	1.2	1.2	—	—	—
9727-C27	N4	—	—	6.7	5.8	4.2	4.0	3.2	—	1.9	1.5	1.5	—	—	—
9727-C30	S6	—	—	11	8.9	6.0	5.7	4.4	—	2.4	1.8	1.8	—	—	—
9727-C31	N7.5	—	—	14	12	8.0	7.5	5.8	—	3.1	2.3	2.3	—	—	—
9727-C32	N10	—	—	21	17	11	10	7.3	—	3.5	2.5	2.4	—	—	—
9727-C34	N14	1,700	—	30	25	15	14	10	—	5.0	3.5	3.4	—	—	—
9727-C35	S20	—	—	44	34	20	18	13	—	5.6	3.9	3.8	100	—	—
9727-C36	N26	—	—	57	46	27	25	18	—	7.9	5.3	5.2	130	—	—
9727-C37	N35	—	—	87	66	35	32	21	—	8.5	5.4	5.3	170	—	—
9727-C38	N44	—	—	110	86	48	44	30	—	12	7.7	7.5	220	—	—
9727-C40	S60	—	—	160	120	60	54	35	—	12	7.7	7.5	280	—	—
9727-C41	N75	—	—	200	150	82	75	50	—	19	12	12	380	—	—
9727-C42	N100	—	—	330	230	110	97	60	—	19	11	11	500	—	—
9727-C43	N140	—	—	400	300	160	140	90	—	31	19	18	720	—	—
9727-C45	S200	—	—	550	410	200	180	120	—	40	24	23	950	112	—
9727-C46	N250	—	—	770	570	280	250	160	—	51	30	29	1,300	140	—
9727-C47	N350	—	—	970	710	350	310	190	—	60	34	32	1,620	160	—
9727-C48	N415	—	—	1,400	990	470	420	250	—	77	43	41	2,180	200	—
9727-C50	S600	—	—	1,740	1,200	600	520	300	—	92	50	49	—	240	150
9727-C51	N750	—	—	2,600	1,900	850	750	440	—	130	68	66	—	—	—
9727-C52	N1000	—	—	3,400	2,400	—	940	550	350	150	—	80	—	—	—
9727-C53	N1400	—	—	5,100	3,600	—	1,400	820	510	220	—	120	—	—	—
9727-C55	S2000	—	—	8,300	5,300	1,900	1,600	800	—	160	75	72	—	360	—
9727-C56	N2500	—	—	8,400	6,000	—	2,500	1,500	950	430	—	230	—	—	—
9727-C57	N4000	—	—	20,000	12,000	—	3,400	1,600	850	290	—	120	—	—	—
9727-C58	N5100	—	—	28,000	18,000	—	5,100	2,500	1,300	420	—	170	—	—	—
9727-C60	S8000	—	—	41,000	25,000	8,000	6,700	3,200	—	530	—	215	—	—	—
9727-C61	N10200	—	—	58,000	36,000	—	10,200	4,900	2,500	775	—	300	—	—	—
9727-C62	N15000	—	—	77,000	47,000	—	13,000	6,100	3,000	980	—	360	—	—	—
9727-C63	N18000	—	—	103,000	64,000	—	18,000	8,500	4,300	1,320	—	500	—	—	—
9727-C65	S30000	—	—	—	79,000	27,000	22,000	11,000	—	1,700	—	630	—	—	—

† Incurs additional shipping charges due to low flash p

Table 2 • Nominal Dynamic Viscosity Values of General Purpose Viscosity Standards in mPa·s (cP)

Catalog Number	Viscosity Standard	-40 °C/ -40 °F	-20 °C/ -4 °F	20 °C/ 68 °F	25 °C/ 77 °F	37.78 °C/ 100 °F	40 °C/ 104 °F	50 °C/ 122 °F	60 °C/ 140 °F	80 °C/ 176 °F	98.89 °C/ 210 °F	100 °C/ 212 °F
9727-C10	N.4†	—	0.32	0.30	0.28	0.27	—	—	—	—	—
9727-C15	N.8†	—	0.64	0.60	0.52	0.51	—	—	—	—	—
9727-C20	N1.0†	—	2	0.93	0.86	0.72	0.70	0.62	—	—	—	—
9727-C22	N2	—	—	2.2	2.0	1.6	1.5	1.3	—	0.85	0.66	0.65
9727-C25	S3	—	—	3.9	3.3	2.5	2.4	1.9	—	1.2	0.90	0.90
9727-C27	N4	—	—	5.2	4.5	3.3	3.1	2.5	—	1.4	1.1	1.1
9727-C30	S6	—	—	10	8.0	5.3	5.0	3.8	—	2.0	1.5	1.5
9727-C31	N7.5	—	—	11	9.5	6.3	5.9	4.5	—	2.4	1.7	1.7
9727-C32	N10	—	—	21	16	9.5	8.8	6.3	—	2.9	2.1	2.0
9727-C34	N14	1,400	—	24	20	12	11	8.2	—	3.8	2.7	2.6
9727-C35	S20	—	—	37	29	17	15	11	—	4.6	3.0	3.0
9727-C36	N26	—	—	47	37	22	20	14	—	6.2	4.1	4.0
9727-C37	N35	—	—	75	56	30	27	18	—	7.1	4.5	4.4
9727-C38	N44	—	—	92	71	39	36	24	—	9.5	6.0	5.9
9727-C40	S60	—	—	141	104	52	47	30	—	10	6.4	6.2
9727-C41	N75	—	—	170	125	68	61	41	—	16	9.5	9.2
9727-C42	N100	—	—	283	202	95	84	52	—	16	9.5	9.2
9727-C43	N140	—	—	340	250	130	120	74	—	25	15	14
9727-C45	S200	—	—	460	340	170	150	98	—	31	18	18
9727-C46	N250	—	—	650	480	230	210	130	—	41	23	23
9727-C47	N350	—	—	820	600	300	260	150	—	49	25	25
9727-C48	N415	—	—	1,200	830	390	350	210	—	62	34	33
9727-C50	S600	—	—	1,500	1,100	490	450	260	—	75	40	39
9727-C51	N750	—	—	2,200	1,600	710	620	370	—	100	55	53
9727-C52	N1000	—	—	2,900	2,000	—	800	460	280	120	—	65
9727-C53	N1400	—	—	4,300	3,000	—	1,200	680	420	180	—	92
9727-C55	S2000	—	—	7,300	4,700	1,700	1,400	700	—	140	62	59
9727-C56	N2500	—	—	7,100	5,100	—	2,100	1,200	780	350	—	180
9727-C57	N4000	—	—	17,000	11,000	—	2,900	1,400	730	250	—	100
9727-C58	N5100	—	—	25,000	16,000	—	4,500	2,100	1,100	360	—	140
9727-C60	S8000	—	—	33,000	20,000	7,000	5,900	2,800	—	450	—	200
9727-C61	N10200	—	—	52,000	32,000	—	9,000	4,200	2,100	660	—	250
9727-C62	N15000	—	—	68,000	41,000	—	11,000	5,400	2,600	840	—	320
9727-C63	N18000	—	—	92,000	57,000	—	16,000	7,500	3,800	1,140	—	420
9727-C65	S30000	—	—	—	71,000	23,000	20,000	9,300	—	1,400	—	540
