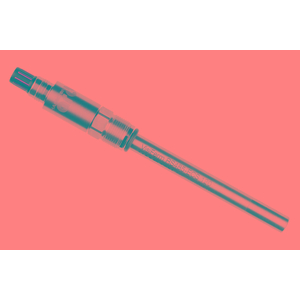

10118255-1311 ĐIỆN CỰC ĐO OXY HÒA TAN VisiFerm RS485-ECS 225 H0 HAMILTON
HAMILTON - Thụy Sỹ
Ứng dụng trong đo pH quá trình của thực phẩm, nước giải khát, công nghệ sinh học, y dược,...
Process Connection PG13,5
Sensor Family VisiFerm RS485
Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
Silicone - FDA 21 CFR 177.2600
VMQ (Silicone elastomer)
Electrical Connector VP8
Parameter DO (Optical)
Sensor Output Arc: Modbus, 4-20 mA (only via Arc Wi 2G Adapter), ECS
Measuring Range 4 ppb to 25 ppm (in liquid)
100 ppm to 600'000 ppm (in gas)
0.01 - 62.85 %-vol or 0.05 to 300 %-sat
0.1 to 625 mbar (pO2)
At 25°C and 1013 mbar total gas pressure
Electrolyte None
Accuracy at 25 °C 1 ± 0.05 %-vol; 21 ± 0.2 %-vol; 50 ± 0.5 %-vol
Drift at Room Temperature < 1 % per week
Oxygen Consumption None
Temperature Sensor NTC 22 kOhm
Configurable Values Dissolved oxygen (DO): mbar, %-sat, %-vol, μg/l ppb, mg/l ppm, ppm gas; Temperature: °C, °F, K
Surface Quality of Steel Ra < 0.4 µm (N5)
Analog Interface ECS
Specifications are subject to change without notice
https://www.hamiltoncompany.com/sensors/dissolved-oxygensensors/visiferm/visiferm-rs485-ecs?part-number=10118255-1311
Spec. Version B
Digital Interface RS485 Modbus (max. 32 addresses)
Baud Rate 4800, 9600, 19200, 38400, 57600,115200 Bd
Operating Voltage 10 to 27 VDC max. 1.5 W
Serial Number Yes
Certificate Yes
ATEX Approval No
IECEx Approval No
Diameter 12 mm
Autoclavable Yes
Steam Sterilizable Yes, max. Temperature 140 °C
CIP Yes
Operating Temperature Range -20 to 140 °C; the sensor provides no DO reading above 85 °C
Pressure Range bar g -1 to 12 bar
Protection Rating IP68
Required Flow None
Compliance details See Material Specification document
a-length 215 mm
Sensor Cap ODO Cap H0
Response Time t98% < 30 s at 25 °C
